Solar Laminators Machine

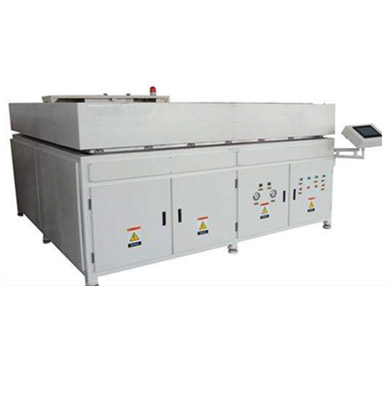

1. BXM-2212M1Y (Semi-Automatic)
| Production rate | 3 Panels/hour |
| Vacuum degree | 30-100Pa |
| Temp. Uniformity | ±1.5ºC |
| Main Body size | 2850x2750x450mm |
| Power supply | 380VAC, 50Hz, 38KW, 3 phases 4 wires |
| Laminating area | 2100x1100mm |
| Max. thickness | 35mm |
| Working temp range | 130-180ºC |
| Net weight | 3500Kg |
2. XM-2422M1Y (Semi-Automatic)
| Production rate | 6 panels/hour |
| Vacuum degree | 30-100Pa |
| Max. thickness of laminate | 35mm |
| Net weight | 7000Kg |
| Laminating area size | 2100x2300mm |
| Main body size | 2850x2750x1450 |
| Working temp. range | 130-180ºC |
| Power supply | AC380V, 50Hz, 42KW |

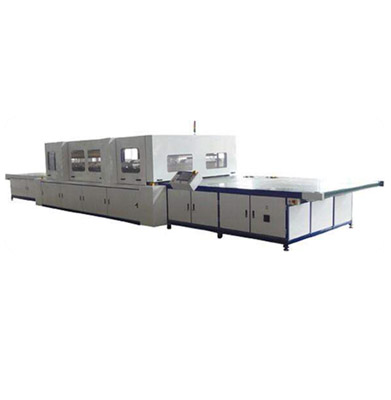

3. BXM-2822A1Y (Automatic)
| Production Rate | 9 panel/hour |
| Laminating area size | 2750x2100mm |
| Temperature uniformity | ±1.5ºC |
| Air pressure | 0.6-0.8MPa |
| Min. body size | 10180x3285x2200mm |
| Power supply | 380VAC, 50Hz, 3 Phases 5 Wires. (Work power 34Kw peak power 58KW) |
| Production capacity | 10~11MW/year. |
| Vacuum degree | 30-100pa |
| Working temp. range | 130-180ºC |
| Air evacuation speed | 70L/S |
| Net weight | 9000Kg |
4. BXM-3622A1D (Automatic)
| Heating plate size | 2200x3600mm |
| Laminating height | 20mm |
| Heating plate | One piece of seamless steel plate (60mm ) |
| Heating plate control zone | 2 zones |
| Temp. control | 30-180ºC (temp. range) ±1.5ºC (temp. deviation) 30ºC - 150ºC (Heat up speed) |
| Membrane sheet | 2560x3690x4mm |
| Load/Unload conveyor | Load : Belt conveyor Unload: Hear resist roller conveyor |
| Electric | AC 381V (±5%), 3Ph, 4 wires, 50/60Hz` |
| Machine dimension | 12600x3280x1900mm |
| Std. Height | 920mm±20mm |
| Heating system | Oil heating method |
| Insulation | Glass wool material under heating plate |
| Vacuum pressure | 133Pa |
| Upper chamber open/close | Movement: vertical Max. openings: 360mm Normal operation: 100-120mm |
| Vacuum pump | 2X-70 (pump model) |
| Control | SIEMENS PLC real time temperature monitoring on touch screen |
| Room condition | 25±5ºC |
| Volume | 350L/min |
